MCRF 728 Connector and jump wires

             •Anew MCRF (Micro Coaxial) seven-generation connector and jump wire, application frequency range up to 28(30)GHz, suitable for 5G mmWave communication and 6G low orbit satellite communication applications.

            •The 728 connector and the C.FL connector (Japan's HRS company) are the same grade in frequency specifications. The C.FL mating height is lower, and only 0.64 diameter coaxial cable for chose. The 728 can chose 1.13 or 1.37 of the coaxial cable diameters.

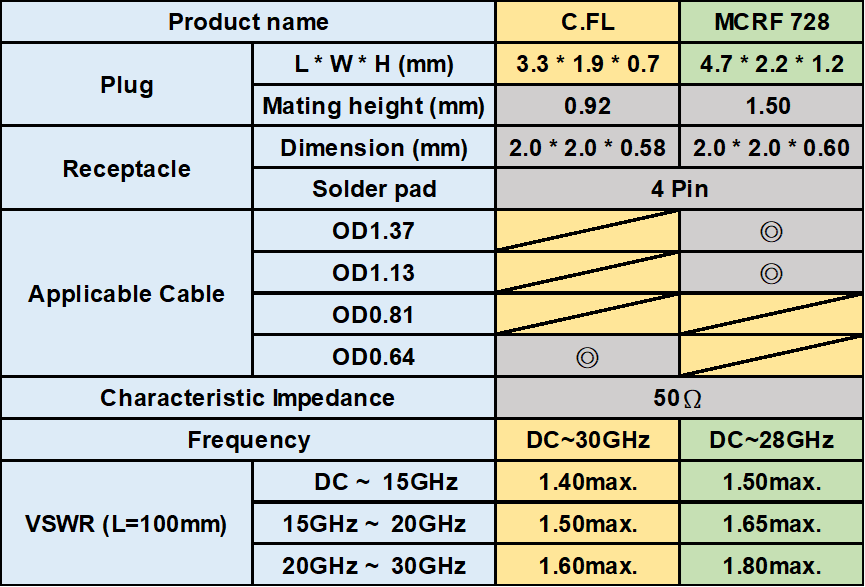

           •The specifications, pad form, and applied cable types between 728 and C.FL are compared as below.

             • 728Catalog
